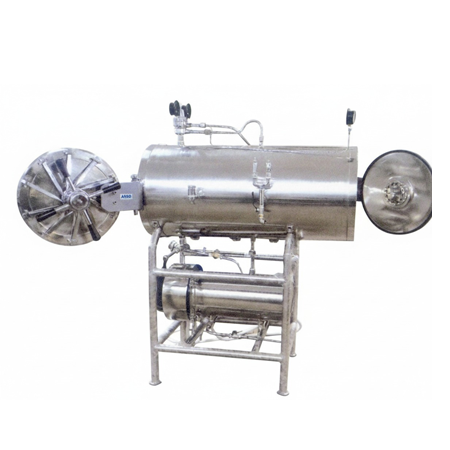

Horizontal Autoclave Machines (Manual)
Horizontal Autoclave Machines (Manual) are designed for safe, efficient, and uniform steam sterilization in hospitals, laboratories, pharmaceutical units, and research institutions. The sterilizer features a heavy-duty triple-walled construction made from high-grade stainless steel, ensuring long life, excellent heat retention, and resistance to corrosion. The inner chamber is fabricated from thi ... ck stainless steel to prevent scaling and withstand high pressure and temperature during continuous operation. Insulated with glass wool and covered with polished stainless steel sheets, the autoclave minimizes heat loss and enhances energy efficiency. Equipped with essential safety mechanisms and reliable manual controls, this horizontal autoclave ensures dependable sterilization while prioritizing operator safety.
STANDARD FEATURES
- Heavy-duty triple-walled stainless steel construction
Available in single-door and double-door cylindrical designs
Thick stainless steel inner chamber for long-term durability
Polished stainless steel exterior with thermal insulation
Digital temperature controller with timer and alarm
Reliable pressure monitoring and automatic pressure control
High safety standards to prevent premature door opening
Suitable for hospitals, labs, pharmaceuticals, and research centers
TECHNICAL SPECIFICATIONS
Type: Horizontal Autoclave Machine – Manual
-
Construction: Twin welded cylinders made of 304 grade stainless steel
-
Inner Chamber Material: 8 SWG Stainless Steel plate
-
Outer Chamber: Insulated with glass wool/asbestos sheeting and covered with polished SS sheet
-
Door Type: Cylindrical, Single Door / Double Door
-
Working Pressure: 15 psi to 20 psi (Maximum up to 22 lbs)
-
Standard Sterilization Temperature: 121°C
-
Heating Elements: ISI marked flange / immersion heaters
-
Door Gasket: Silicon rubber gasket
-
Control System: Digital temperature controller
-
Timer & Alarm: Digital timer with buzzer alarm
-
Pressure Control: Automatic pressure control switch
-
Pressure Gauge: Reliable steam pressure gauge
-
Safety Valves: Brass safety valves
-
Water Level Indicator: Viewing glass for water level check
-
Additional Safety Features:
-
Vacuum breaker
-
Steam trap valve
-
Automatic water level cut-off
-
-
Finish: Powder coated exterior
