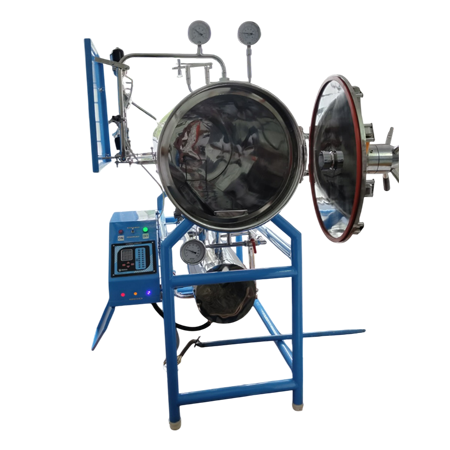

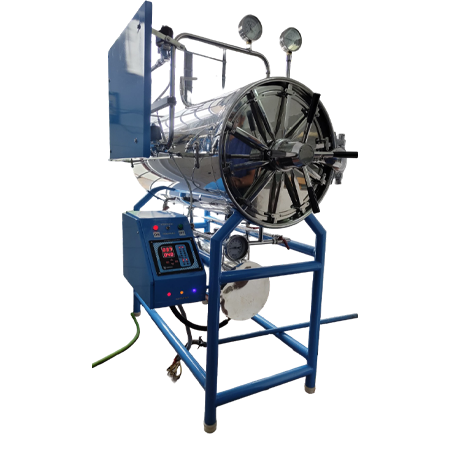

Horizontal Autoclave Machines with 7Step Timer
Horizontal Autoclave Machines with 7-Step Timer are engineered for high-performance steam sterilization in hospitals, laboratories, pharmaceutical units, and research facilities. The sterilizer is built with a robust twin-welded cylindrical construction using thick 304-grade stainless steel, ensuring durability, corrosion resistance, and long service life. The inner chamber is fabricated from hea ... vy-gauge stainless steel to prevent scaling, while the outer chamber is fully insulated with glass wool or asbestos sheeting and covered with polished stainless steel to minimize heat loss. Equipped with a programmable 7-step timer and advanced safety fittings, this autoclave delivers precise, safe, and consistent sterilization under controlled temperature and pressure conditions.
STANDARD FEATURES
Heavy-duty twin-welded stainless steel construction
-
Programmable 7-step timer for accurate sterilization cycles
-
Thick inner chamber to prevent waste scaling
-
Polished stainless steel exterior with thermal insulation
-
High safety protection against over-pressure and premature door opening
-
Precise temperature and pressure monitoring instruments
-
Powerful immersion heaters for fast steam generation
-
Mounted on sturdy tubular steel frame with leveling arrangement
TECHNICAL SPECIFICATIONS
Type: Horizontal Autoclave Machine with 7-Step Timer
-
Construction:
-
Twin welded cylindrical body
-
304 grade stainless steel, 10 SWG
-
-
Inner Chamber Material: 8 SWG Stainless Steel plate
-
Outer Chamber:
-
Insulated with glass wool / asbestos sheeting
-
Covered with polished stainless steel sheet
-
-
Working Pressure: Up to 22 lbs
-
Temperature Monitoring:
-
3” Bimetallic dial thermometer for chamber temperature
-
-
Pressure Monitoring:
-
Pressure gauge for steam chamber
-
Compound pressure gauge for sterilizing chamber
-
Safety & Control Fittings
-
Pressure control switch (SWITZER GH 900 HC 2P)
-
Spring-loaded safety valve for pressure regulation
-
½” Spirax steam trap for condensate and air removal
-
Non-return valve fitted to steam trap
-
Low water cut-out for heater safety
-
Water gauge glass with locking valve for boiler level indication
-
Steam drier for dry and efficient steam supply
Water & Steam System
-
Water inlet valve for boiler filling
-
Water outlet valve for boiler draining
Heating System
-
Immersion heaters:
-
2 × 6 KW (Total 12 KW)
-
-
Power Supply:
-
400 Volts AC
-
3 Phase
-
50 Hz
-
Mounting & Finish
-
Mounted on heavy tubular steel frame
-
Ground leveling flanges provided
-
Finished with durable lacquer painting
