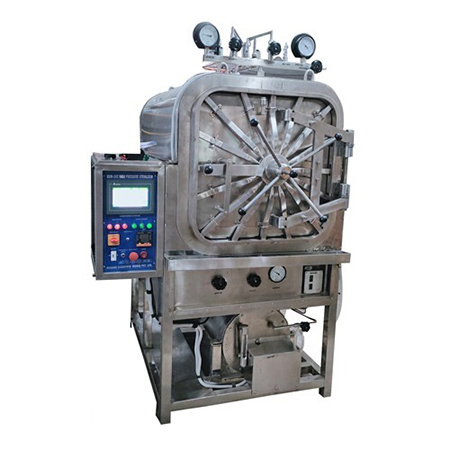

Rectangle Autoclave
This Stainless Steel Autoclave is designed for safe, efficient, and reliable steam sterilization in hospitals, laboratories, pharmaceutical units, and research facilities. The inner chamber and outer jacket are constructed from high-quality SS 304 stainless steel, ensuring excellent corrosion resistance and long service life. Equipped with flanged type heating elements, precise pressure contro ... l, and advanced safety mechanisms, the autoclave delivers consistent sterilization performance. Thermal insulation with mineral wool minimizes heat loss, while multiple exhaust options, automatic vacuum breaker, and condensate removal systems enhance operational efficiency and safety.
STANDARD FEATURES
SS 304 stainless steel inner chamber and jacket
-
Flanged type heating elements for efficient heating
-
Mineral wool insulation for superior heat retention
-
Self-locking safety door with neoprene rubber gasket
-
Automatic pressure and water level safety protections
-
Dual-speed steam exhaust (fast & slow)
-
Advanced condensate and moisture removal system
-
Reliable electrical controls with indicators and relays
-
Designed for heavy-duty, continuous operation
TECHNICAL SPECIFICATIONS
Construction:
-
Inner chamber: Stainless Steel 304 quality
-
Outer jacket: Stainless Steel 304 quality
Heating System:
-
Flanged type heating elements
-
Operates on 400–440V AC, 3 Phase, 4 wire system
Insulation:
-
Mineral wool insulation (62 mm thickness)
Pressure System:
-
Pressure gauge for monitoring chamber pressure
-
Pressure control switches (Piezostat)
-
Working pressure range: 15 psi to 22 psi
Door & Sealing:
-
Self-locking safety door
-
Synthetic neoprene rubber door gasket
-
Single door configuration
Water & Safety Features:
-
Water level indicator
-
Low water level cut-off device
-
Automatic vacuum breaker
Steam & Exhaust System:
-
Two separate valves for evacuating air and steam
-
Two-speed steam exhaust: fast and slow
-
Plug screen to prevent discharge line choking
-
Steam trap for automatic condensate removal
-
Moisture trap fitted inside the chamber
Controls & Accessories:
-
Main power switch
-
Pressure control system
-
Pilot lamps and relays
-
Multiport valve fitted at the front top
